Superwool Plus and Prime Fibres
Innovative, low biopersistent, market leading Superwool Fibres.
What is Superwool® fibre?
Superwool insulating fibre is a low biopersistent product offering a versatile alternative to traditional insulation solutions for industrial and commercial applications.
Morgan's development in low biopersistence fibres has led the revolution in their use for high-temperature insulation applications over the last 20 years and our most recent innovation, Superwool Prime.
Our patented Superwool products, manufactured using ISO 9002-certified processes, are manufactured from Alkaline Earth Silicate (AES) composition fibres, uniquely engineered to offer advantages in high-temperature insulation applications:
Key benefits include:
- Classification temperatures of 1200°C Superwool Plus and 1300°C Superwool Prime
- Low biopersistent exonerated fibres
- Lower thermal conductivity, improves insulation by 20% compared to other tested AES fibres
- Up to 30% more fibres due to high fibre index, efficient prevention of heat transfer and greater strength
- Improved handling, operator satisfaction

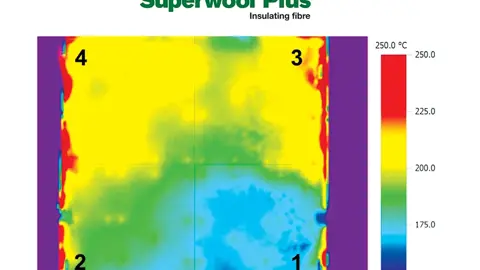

The panel was heated to 1000°C for 2-hours until a steady state was achieved. Thermocouples were placed on the four zones' cold face (casing) to follow the real-time temperature evolution. On the same panel, 1m2 blanket was installed with four different insulation layers:
- Zone 1: 2x25mm, 128kg/m3, Superwool® Plus Blanket
- Zone 2: 2x25mm, 96kg/m3, Superwool Plus Blanket
- Zone 3: 2x25mm, 128kg/m3, Cerablanket® RCF
- Zone 4: 2x25mm, 128kg/m3, AES Competitor blanket
Superwool Plus Blanket, 128 kg/m3 density and 96 kg/m3 density, provides a significantly lower cold face temperature compared to the AES Competitor Blanket, 128 kg/m3 density and Cerablanket RCF, 128 kg/m3 density.

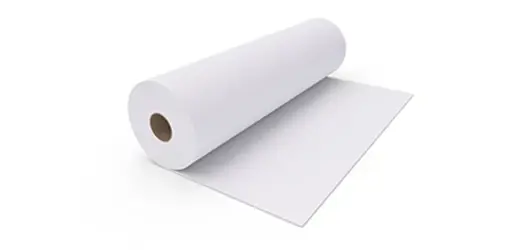

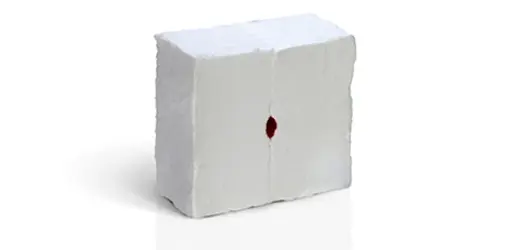

Explore our Superwool Plus and Superwool Prime Products
Superwool Plus and Superwool Prime products are manufactured globally. Please check with your local representative for local packaging and availability.

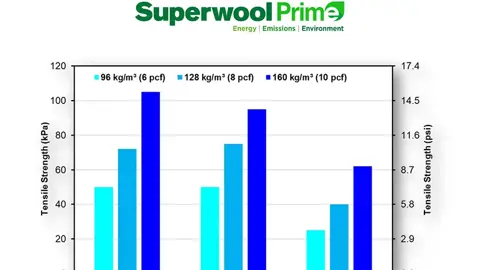

Superwool Prime provides excellent Tensile Strength
- Superwool Prime Blanket has exceptional feel and handleability thanks to its fine fibres; 2.4 to 3.4 µm mean fibre diameter*
- Tensile strength of Superwool Prime blanket is similar to Superwool Plus fibres
- Superwool Prime has excellent shelf-life, no significant loss of strength has been observed when stored in standard packaging
*Measured using Scanning Electron Microscopy at Morgan Advanced Materials Fibre CoE. Internal benchmark tests conducted at Morgan Advanced Materials Fibre CoE according to EN 1094-1 Standard.
